Max 6,450 lbs · Boom 28.4 ft · Fits through a single door

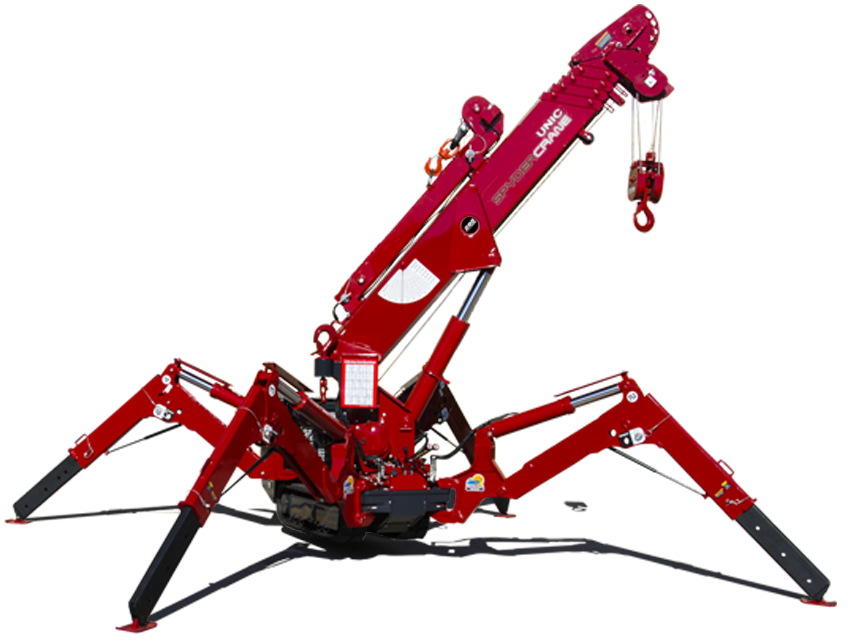

Offering three models of cranes, the SPYDERCRANE URW200 Series mini crane is our most versatile. While popular among many industries, the SPYDERCRANE 200 Series mini crane is quickly becoming one of the most in-demand glazing tools to set glass and materials. Available models offer maximum lifting capacities of 1,990 lbs, 5,800 lbs, and 6,450 lbs. A variable geometric footprint, courtesy of adjustable outriggers, allows for set-up in tight spots such as hallways, balconies, or around obstacles, tackling projects once thought impossible.
As a standard feature of the URW200 Series, these SPYDERCRANE mini cranes are equipped with a wireless radio remote control system, freeing the operator from being tethered to the crane. Couple this crane with a glass manipulator and it becomes one of the most powerful glazing tools on the market. The champion of SPYDERCRANE®, the URW200 Series can be seen everywhere from the rooftops of New York to the oil fields of Texas.
| URW295 | URW205 NYC | URW095 | |
|---|---|---|---|
| Max Capacity | 6,450 lbs @ 4.6 ft | 5,800 lbs @ 5.0 ft | 1,990 lbs @ 12 ft |
| Boom Length | 28.4 ft | 28.4 ft | 28.4 ft |
| Approximate Tip Height | 31 ft | 31 ft | 31 ft |
| Wire Rope on Drum | ~150 ft | ~150 ft | ~150 ft |
| Travel Dimensions (W × H × L) | 24″ × 56″ × 108″ | 24″ × 56″ × 108″ | 24″ × 56″ × 108″ |
| Footprint (Max) | 12'6″ × 12'6″ | 12'6″ × 12'6″ | 12'6″ × 12'6″ |
| Footprint (Min) | 8'6″ × 7'6″ | 8'6″ × 7'6″ | 8'6″ × 7'6″ |
| Weight of Crane | ~4,300 lbs | ~4,300 lbs | ~4,300 lbs |
URW205 is a variant configured and certified for use in New York City. URW095 is a variant for jobs requiring a smaller capacity.
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | All 200 Series Models | ||
|---|---|---|---|
| Gas / Propane | Standard | ||
| Diesel | Optional | ||
| Battery/Electric with Gas / Diesel (Dual Power) | Optional | ||
| 110V Battery/Electric Only | Optional | ||
While available in traditional gas, propane, and diesel power options, SPYDERCRANE® mini cranes also offer a zero-emission Battery/Electric option. These models run on battery power and plug into a standard 110 Volt wall outlet. No special wiring or electrical adapters needed to charge and maintain the battery while the crane operates. For added versatility, Battery/Electric can also be paired with traditional gas, propane, or diesel power as a dual-power configuration, creating a machine equipped for any jobsite.
| URW295 | URW205 NYC | URW095 | |
|---|---|---|---|
| Single Part Line | Standard | Standard | Optional |
| 2-Part Line | Optional | Optional | Standard |
| 4-Part Line | Standard | Standard | - |
| Jib with Searcher Hook | Standard | Standard | Standard |
| Variable Geometry Outriggers | Standard | Standard | Standard |
| Patented Overturn Protection | Standard | Standard | Standard |
| Automatic Throttle Advancement | Standard | Standard | Standard |
| On-board Self Diagnostic Computer System | Standard | Standard | Standard |
| Full Function Wireless Remote | Standard | Standard | Standard |
| Automatic Hook Stow | Standard | Standard | Standard |
Click any feature below to watch a short video and learn how it works.
| URW295 | URW205 NYC | URW095 | |
|---|---|---|---|
| Attachable Work Platform | Optional | Optional | Optional |
| Non-marking Tracks | Optional | Optional | Optional |
| SPYDERWEB Glass Manipulator | Optional | Optional | Optional |
| Woods Pwr Grip Hanging Cups | Optional | Optional | Optional |
| Auxiliary Winch | Optional (400′ wire rope) | Optional (400′ wire rope) | Optional (400′ wire rope) |
| Exhaust Scrubber / Catalytic Converter | Optional | Optional | Optional |
| Propane Tank | Optional | Optional | Optional |
| Arctic Kit / 12V & 110V Combo | Optional | Optional | Optional |
| Crane Lube Kit (Lube-a-Boom) | Optional | Optional | Optional |
| Fire Extinguisher | Optional | Optional | Optional |
| Spare Parts Kit (2-Year Supply) | Optional | Optional | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional | Optional | Optional |
| Outrigger Pads | Optional | Optional | Optional |
| Trailer & Accessory Kit | Optional | Optional | Optional |
| Rigging | Optional | Optional | Optional |
| Spare Key (Pair) | Optional | Optional | Optional |
| Steel Pallet w/Fork Pockets | Optional | Optional | Optional |
| Strobe Light | Optional | Optional | Optional |
| Weatherproof Cover | Optional | Optional | Optional |
Click any featured accessory below to learn more.
.jpg)
.jpg)
Photos from real SPYDERCRANE 200 Series jobsites. Click any photo to view full size.
SPYDERCRANE® operator training with hands-on instruction from dedicated trainers.
