Max 1,990 lbs · Boom 18.0 ft · Fits in a standard elevator

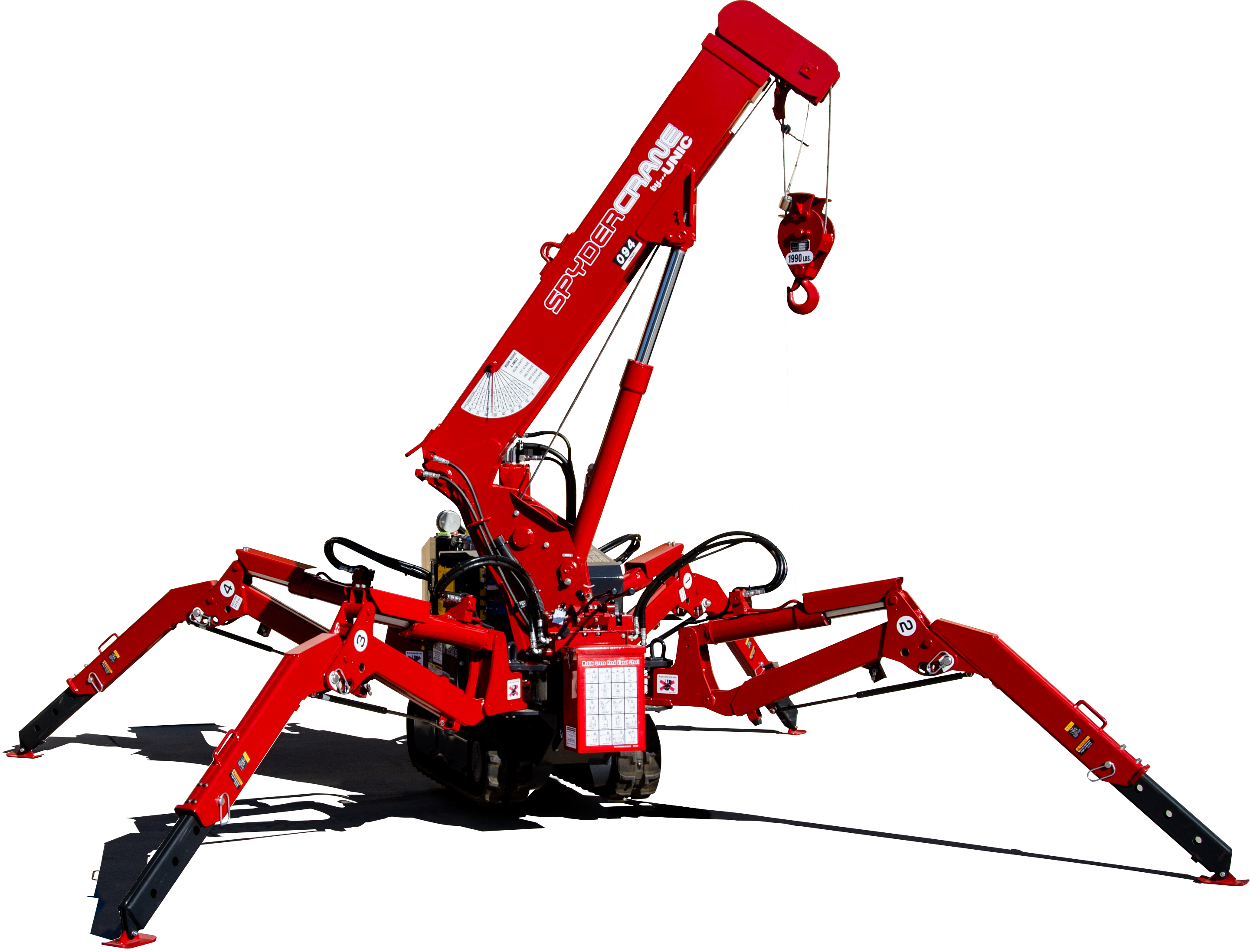

The SPYDERCRANE URW094 is the smallest mini crawler crane in our lineup, and often the only crane that can get to where the work is. Nicknamed the "elevator model," this lightweight zero-emission crane is built for indoor jobsites with limited ground pressure allowances, tight access, or spaces where other equipment simply can't fit.
The URW094 travels on battery power and plugs into any standard 110V outlet to lift. No special wiring, no fumes, no emissions. Variable geometry outriggers let it set up around obstacles, on uneven ground, on a catwalk, in a hallway, or directly against a wall.
| Specification | URW094 |
|---|---|
| Max Load Capacity | 1,990 lbs (900 kg) |
| Max Boom Length | 18.0 ft (5.5 m) |
| Max Hook Height | 17.7 ft (5.4 m) |
| Max Working Radius | 13.1 ft (4.0 m) |
| Travel Width (minimum) | 23.6 in (600 mm) |
| Travel Height | 55.1 in (1,400 mm) |
| Travel Length | 97.6 in (2,480 mm) |
| Machine Weight | ~1,455 lbs (660 kg) |
| Ground Pressure (crawlers) | ~3.0 psi (21 kPa) |
| Slewing Range | 360° continuous |
| Wireless Remote Range | 300 ft (~90 m) |
| Power Source | Battery/Electric (110V plug-in to lift) |
| Boom Sections | 4-section telescoping |
| Outrigger Configuration | Variable geometry, 4-point |
Specifications subject to change. Download the official spec sheet for the most current data.
| Power Configuration | URW094 |
|---|---|
| Battery/Electric Only (110V plug-in to lift) | Standard |
| Gas / Propane | - |
| Diesel | - |
| Dual Power | - |
The URW094 is battery/electric only. There is no gas, propane, or diesel option. The crane travels on battery power so it moves freely without a cord. To lift, it must be plugged into a standard 110V wall outlet. No special wiring or electrical adapters needed. The crane does not lift on battery alone; the plug-in connection provides the power for all crane operations. This makes the URW094 a true zero-emission indoor crane, approved for food-grade facilities, data centers, occupied buildings, and any environment where air quality and emissions are a concern.
| URW094 | |
|---|---|
| Single Part Line | Standard |
| Jib with Searcher Hook | Standard |
| Variable Geometry Outriggers | Standard |
| Automatic Throttle Advancement | Standard |
| On-board Self Diagnostic Computer System | Standard |
| Full Function Wireless Remote | Standard |
| Automatic Hook Stow | Standard |
Click any feature below to watch a short video and learn how it works.
| URW094 | |
|---|---|
| Attachable Work Platform | Optional |
| Non-marking Tracks | Optional |
| SPYDERWEB Glass Manipulator | Optional |
| Auxiliary Winch | Optional |
| Fire Extinguisher | Optional |
| Spare Parts Kit (2-Year Supply) | Optional |
| Track Mats 3' × 6' (Set of 3) | Optional |
| Outrigger Pads | Optional |
| Rigging | Optional |
| Spare Key (Pair) | Optional |
| Steel Pallet w/Fork Pockets | Optional |
| Weatherproof Cover | Optional |
Click any featured accessory below to learn more.
