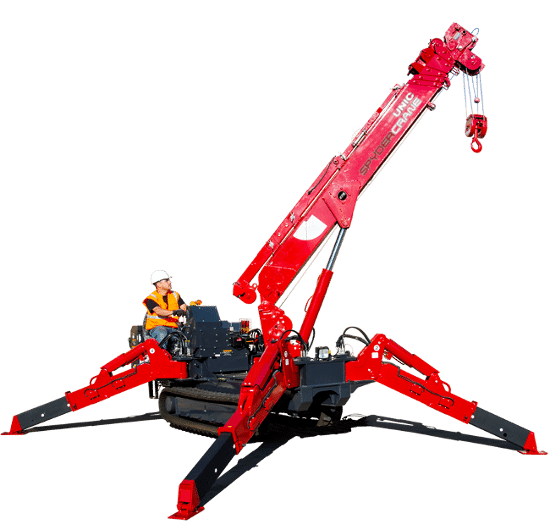

SPYDERCRANE 300 Series

The SPYDERCRANE 300 Series mini crane is the perfect lifting solution for today’s modern construction jobsites. Getting a bit bigger, the 300 Series has increased boom length and lifting capacity over the 200 Series, but maintains the technological advances and safety features that the SPYDERCRANE brand is known for.

While perfect for construction, the SPYDERCRANE 300 Series is only 52 inches wide when in travel mode allowing for travel through a standard double doorway.  The hexagonal boom design provides increased rigidity and greatly reduces sway; which increases accuracy and overall safety during crane operations. Offering Zero Emissions power options, indoor construction or low ventilation areas are not a problem.

The SPYDERCRANE 300 Series mini cranes are a great option for construction sites needing to lift materials to a higher floor, set a stairway in a confined space, or that need a longer boom than the URW295.

Model SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376
Max Capacity 5,800 lbs @ 9.0′ 5,800 lbs @ 9.0′ 6,680 lbs @ 8.2′
Boom Length 47′ 10″ 47′ 10″ 47′ 10″
Approximate Tip Height 52′ ft 52′ ft 52′ ft
Wire Rope on Drum ~250 ft ~250 ft ~250 ft
Travel Dimensions (W x H x L) 51″ x 71″ x 171″ 51″ x 71″ x 171″ 51″ x 71″ x 171″
Approximate Foot Print (Max) 12’6″ x 12’6″ 12’6″ x 12’6″ 12′6″ x 12’6″
Approximate Foot Print (Min) 15′ x 14′ 6″ 15′ x 14′ 6″ 15′ x 14′ 6″
Weight of Crane ~8,700 lbs ~8,700 lbs ~8,700 lbs
Model SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376
Diesel Standard Standard Standard
Electric with Diesel Optional Optional Optional
110 Battery Power/Diesel Optional Optional Optional
Model SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376
Single Part Line Optional Standard Standard
4-Part Line Standard Standard Standard
Jib with Searcher Hook   Standard Standard
Load Moment Indicator
with Electronic Display
  Standard Standard
Patented Overturn Protection Standard
Automatic Throttle Advancement   Standard Standard
On-board Self Diagnostic
Computer System
  Standard Standard
Full Function Wireless Remote   Standard Standard
Automatic Hook Store Standard Standard Standard
Model SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376
Attachable Work Platform Optional Optional Optional
Non-marking Tracks Optional Optional Optional
SPYDERWEB Glass Manipulator Optional Optional Optional
Woods Pwr Grip Hanging Cups Optional Optional Optional
Exhaust Scrubber/
Catalytic Converter
Optional Optional Optional
Arctic Kit / 12V & 110V Combo Optional Optional Optional
Crane Lube Kit (Lube-a-Boom) Optional Optional Optional
Fire Extinguisher Optional Optional Optional
Spare Parts Kit (2-Year Supply) Optional Optional Optional
Track Mats 3’ x 6’ (Set of 3) Optional Optional Optional
Outrigger Pads Optional Optional Optional
Trailer & Accessory Kit Optional Optional Optional
Rigging Optional Optional Optional
Spare Key (Pair) Optional Optional Optional
Steel Pallet w/Fork Pockets Optional Optional Optional
Strobe Light Optional Optional Optional
Weatherproof Cover Optional Optional Optional
Model SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376
Download Spec Sheets SPYDERCRANE URW306(T) SPYDERCRANE URW306 SPYDERCRANE URW376

Compare All Models or Contact Us for more Information

SPYDERCRANE Features

On-Board Self Diagnostic Computer System
Power Options
Narrow Track Width and Low Center of Gravity
Automatic Hook Stow
Wireless Remote Control
Automatic Throttle Advancement
Superior Materials and Construction
Construction Crane

SPYDERCRANE Mini Crane Options and Accessories

SPYDERWEB Glass Manipulator
Auxiliary Winch
Smiley Lifting Work Platforms
